Component description

The child-list component creates child objects directly from the panel. Used mainly for creating synonyms, acronyms or other object types related to the parent object. Objects created in this way are displayed as child objects in the left application hierarchy.

Warning

This component is obsolete and has been replaced by the Relations component.

Example

Minimal JSON

{
  "type": "child-list",
  "objectTypeKey": ""
}
{
  "key": "list_synonym_in_panel",
  "template": {
    "type": "panel",
    "title": "list_synonym_in_panel",
    "values": [
      {
        "type": "child-list",
        "title": "list_synonym",
        "objectTypeKey": "synonym"
      }
    ]
  }
}

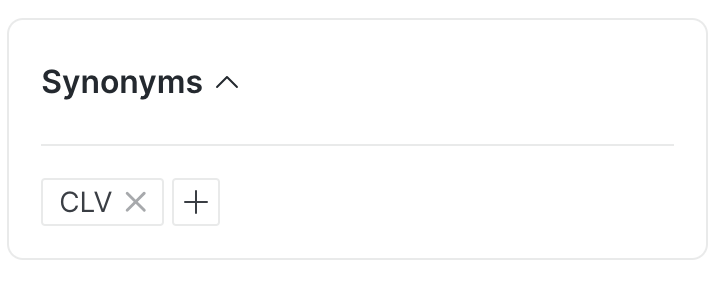

Example of a child list component in a panel taken from the core_business_glossary package.

Nested properties

PropertyDescriptionValuesMandatory
typechild-liststringYes
objectTypeKeyKey of the object type that can be created from the child list component.stringYes
componentIdUnique ID of a component. If left empty, a random string will be generated. Primarily used in patch packages to define the component's position within the layout (template).stringNo
titleTranslation key of the title. Define the key in translations to specify how the text is displayed in the UI. Unlike the name property, if you use a specific string of text for the title, this text will appear with the package key. For example, Comment Section will be displayed as package_key_comment section.stringNo
